Rudder propellers

ABS MARINE LLC is the representative of SJMATEK (Suzhou) MARINE MACHINE CO., LTD in Russia.

Relying on the advantages of SUJING Group, SJMATEK (Suzhou) MARINE MACHINE CO., LTD is committed to the research, development, design, production, supporting and service of marine special propulsion machinery. Our leading products include tunnel thruster, rudder propeller and main propulsion controllable pitch propeller.


The company is a high-tech enterprise in Jiangsu province, which has passed the international quality management system certification and obtained the third-level certificate of production safety standardization.


At present, it has delivered hundreds of product and obtained certificates of classification societies such as RMRS, CCS, BV, LR, ABS, RINA, DNV-GL, BKI and CRS. Our products are widely installed in various kinds of vessels at home and abroad and enjoy a high reputation in the marine industry.

The official web site of  SJMATEK (Suzhou) MARINE MACHINE CO., LTD: https://www.sjmatek.cn/

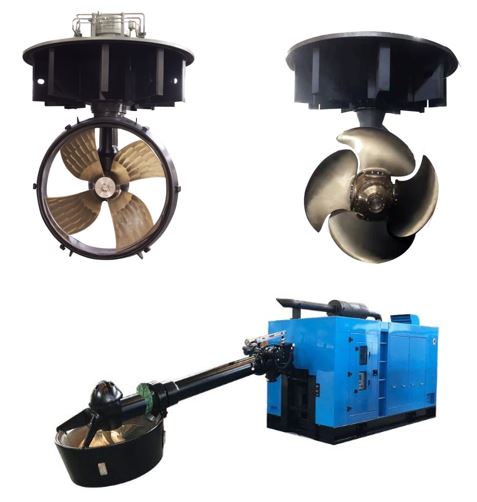

Rudder propellers

Модельный ряд винторулевых колонок VETH Z-DRIVE с одним винтом

Модель Диапазон мощностей
(kW)
Частота вращения двигателя
(rpm)
Диаметр винта
(mm)
VZ-150 80-200 1800 / 2000 Ø700 - Ø800
VZ-200 150-350 1800 / 2000 Ø970 - Ø1000
VZ-400 200-550 1800 / 2000 Ø1130 - Ø1250
VZ-400A 200-450 1800 / 2000 Ø1030 - Ø1100
VZ-550 400-675 1800 / 2000 Ø1250 - Ø1350
VZ-700 600-800 1800 / 2000 Ø1400 - Ø1500
VZ-800 700-1050 1600 / 1800 Ø1600 - Ø1700
VZ-900 800-1050 1600 / 1800 Ø1600 - Ø1700
VZ-1000 900-1150 1600 / 1800 Ø1800 - Ø1900
VZ-1250 900-1300 1000 / 1600 / 1800 Ø1900 - Ø2100
VZ-1400 1200-1625 1000 / 1200 / 1600 / 1800 Ø2100 - Ø2200
VZ-1800 1400-2250 1000 / 1200 / 1600 / 1800 Ø2400 - Ø2600

Модельный ряд винторулевых колонок VETH Z-DRIVE с винтами встречного вращения

Модель Диапазон мощностей
(kW)
Частота вращения двигателя
(rpm)
Диаметр винта
(mm)
VZ-160-CR 80-240 1800 / 2000 Ø600 - Ø650
VZ-250-CR 200-410 1800 / 2000 Ø750 - Ø860
VZ-450-CR 350-710 1800 / 2000 Ø1100 - Ø1200
VZ-700-CR 600-850 1800 / 1800 Ø1250 - Ø1350
VZ-800-CR 700-990 1600 / 1800 Ø1350 - Ø1500
VZ-900-CR 800-1320 1600 / 1800 Ø1350 - Ø1500
VZ-1250-CR 1200-1800 1600 / 1800 Ø1600 - Ø1750
